DESCRIPTION

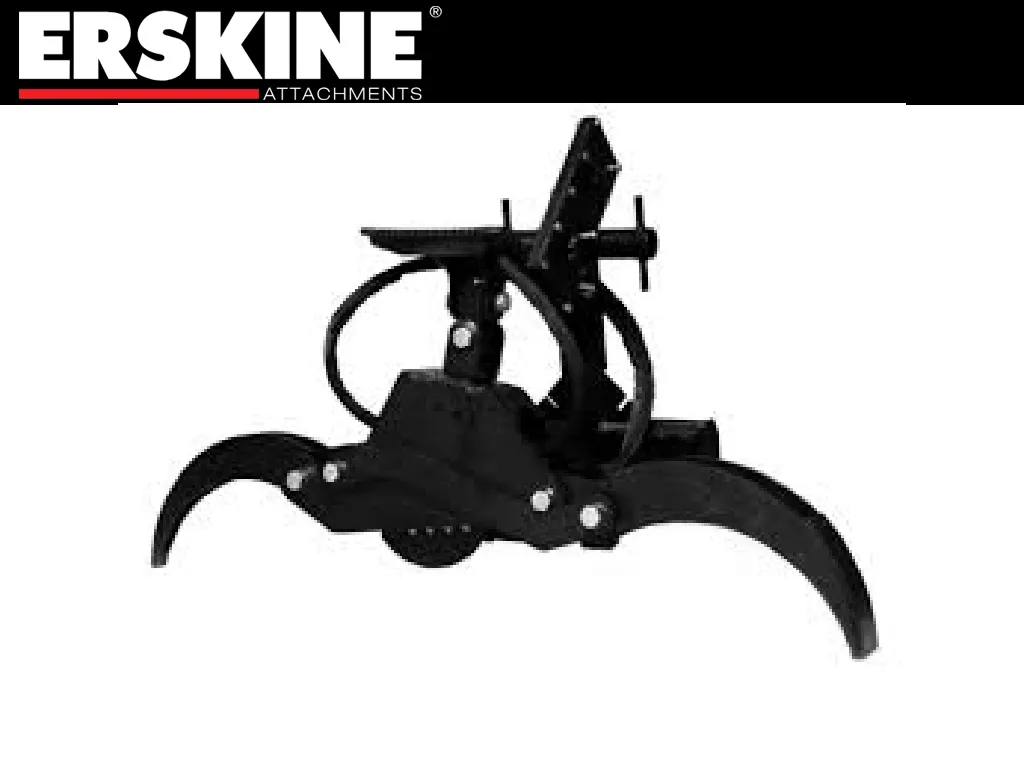

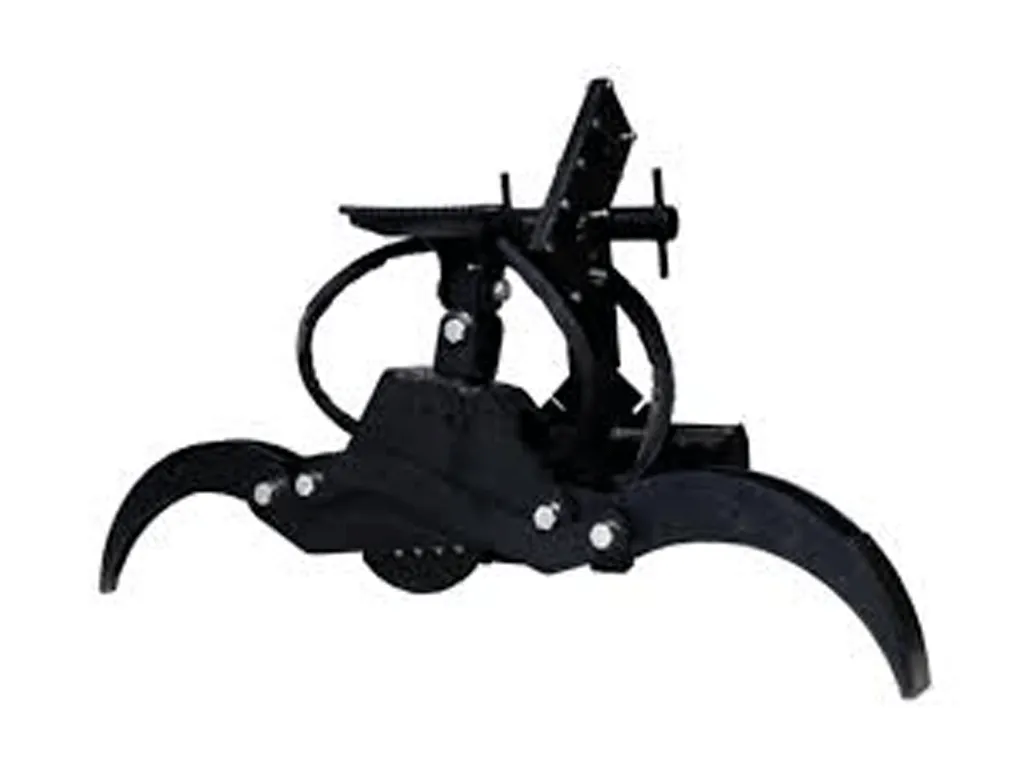

Mini Multi-Purpose Grapple

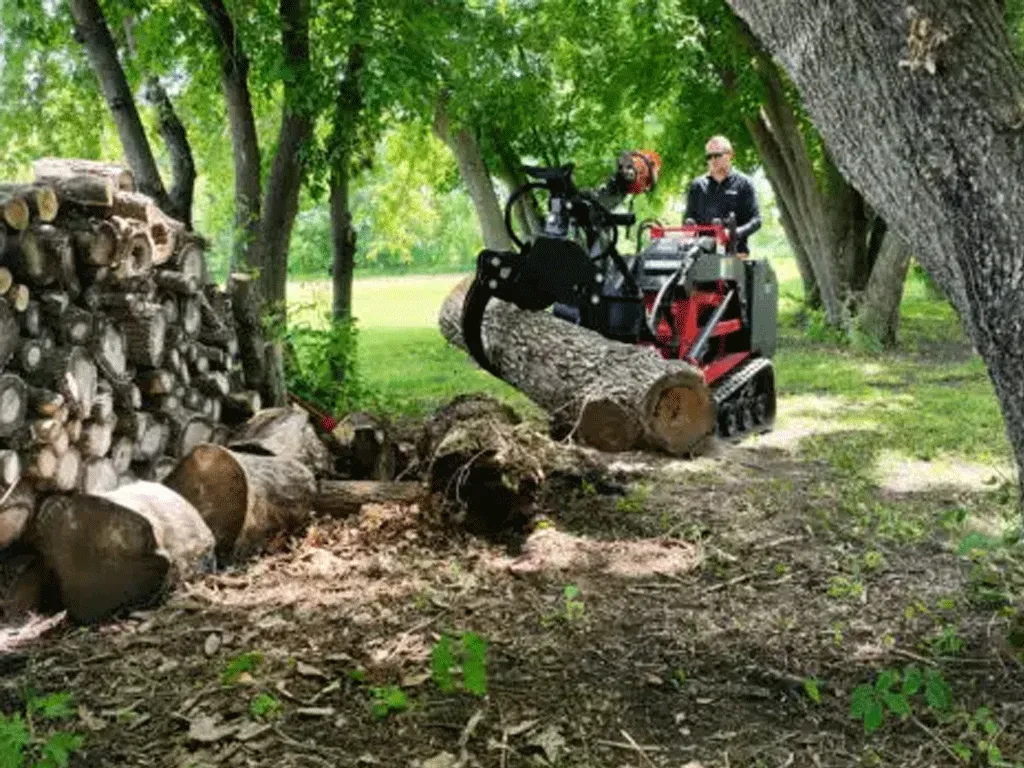

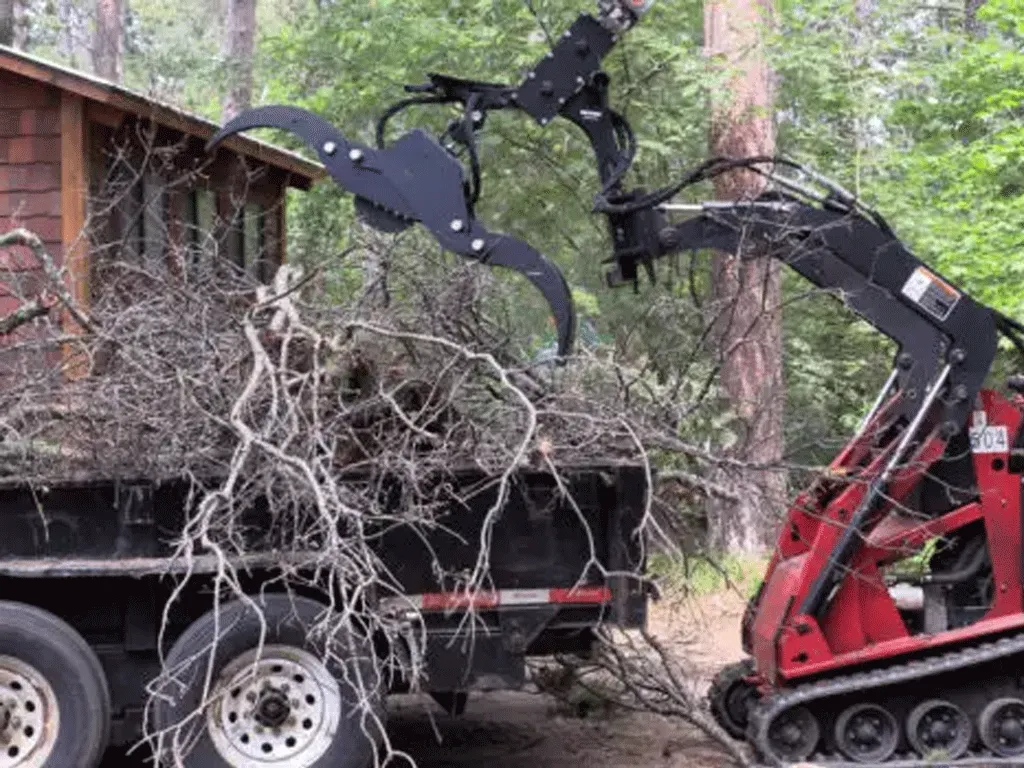

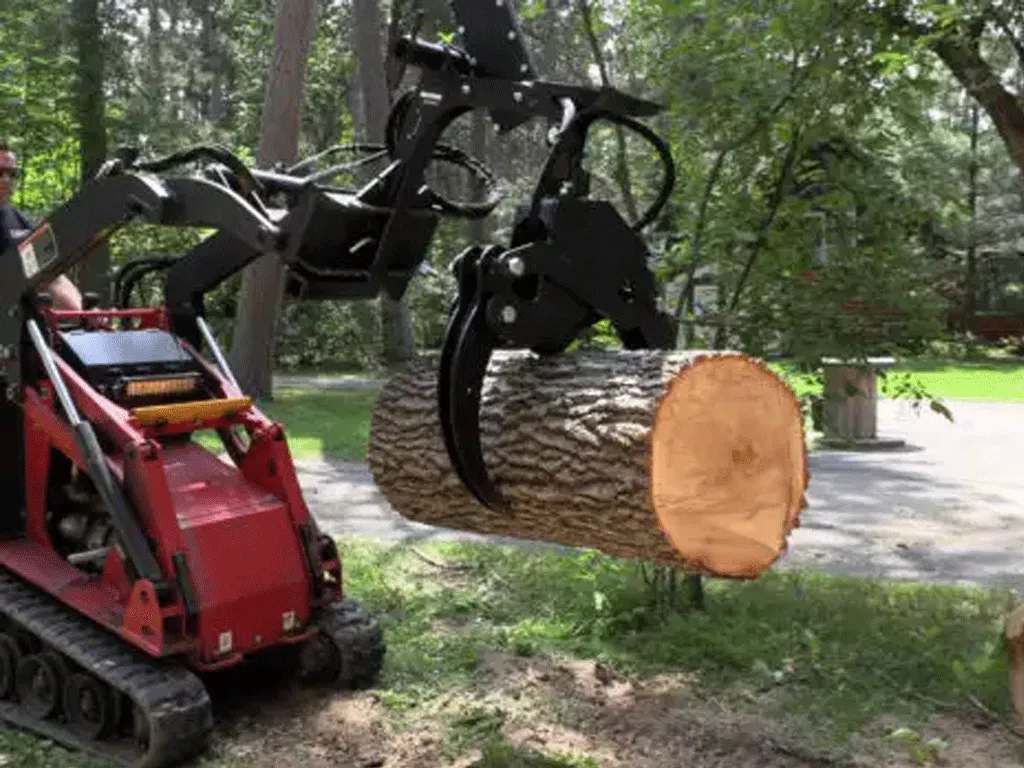

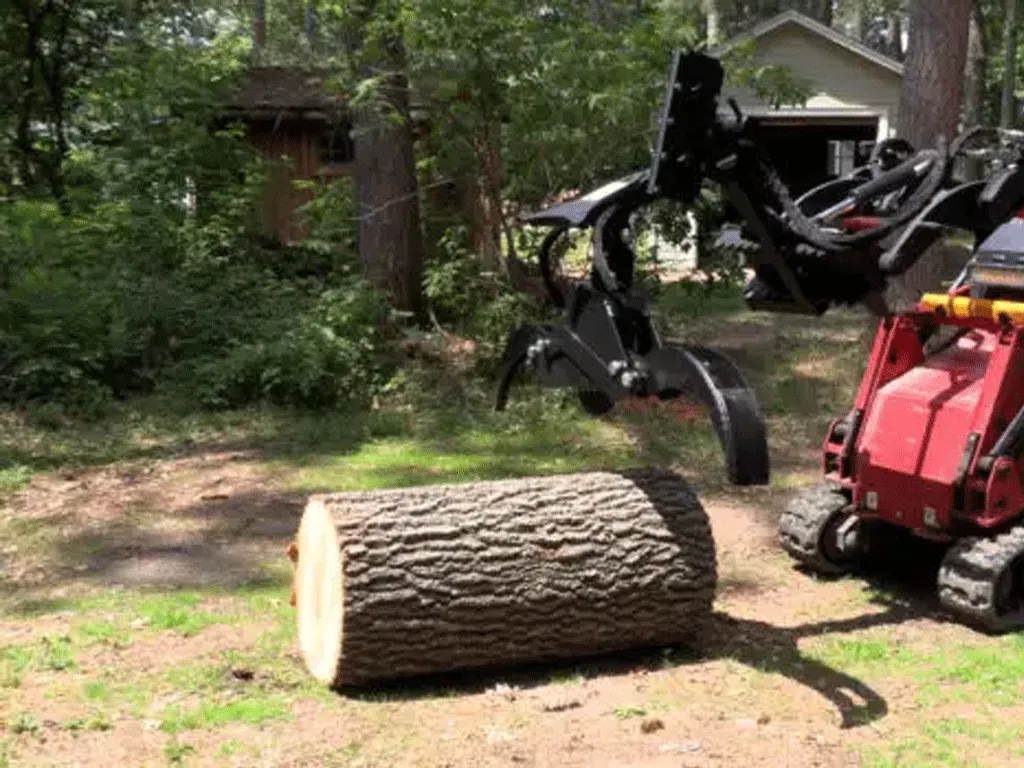

Boost productivity – great for moving trees, boulders and large wood piles efficiently with your skid steer. With the Mini Multi-Purpose Grapple trees and debris can be delicately removed, repositioned or loaded without damaging the surrounding landscape.
Features
- Opens an industry leading 67″ wide
- Closes to less than 1 inches
- Optional hydraulic rotation

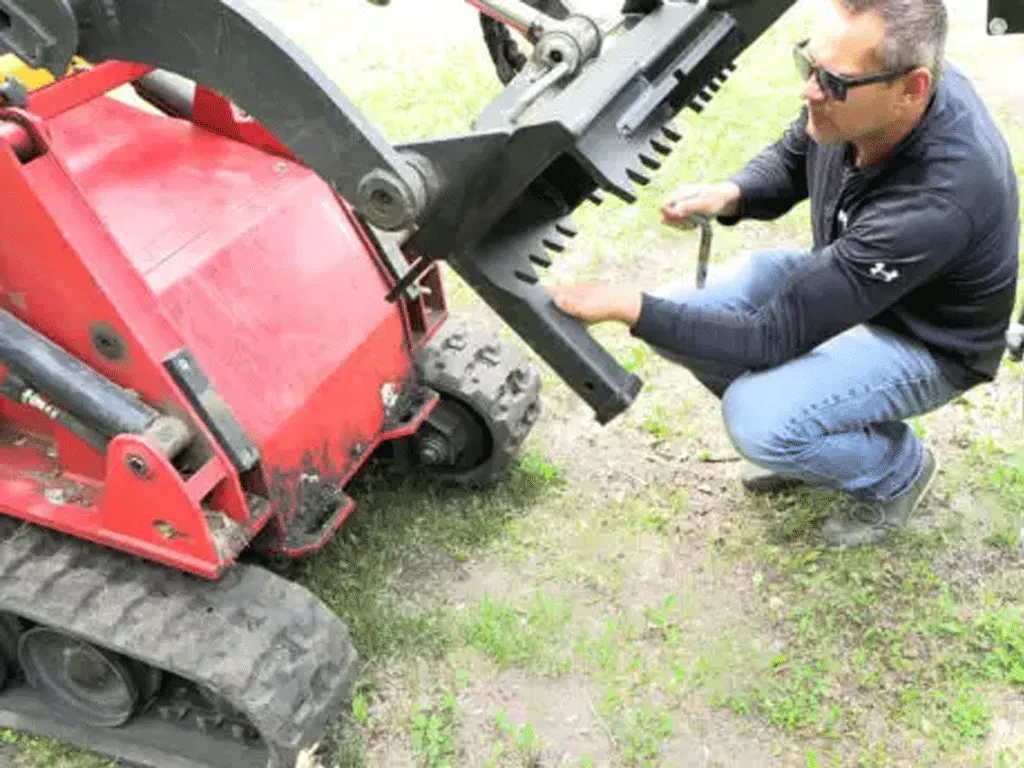

- Welded push bar

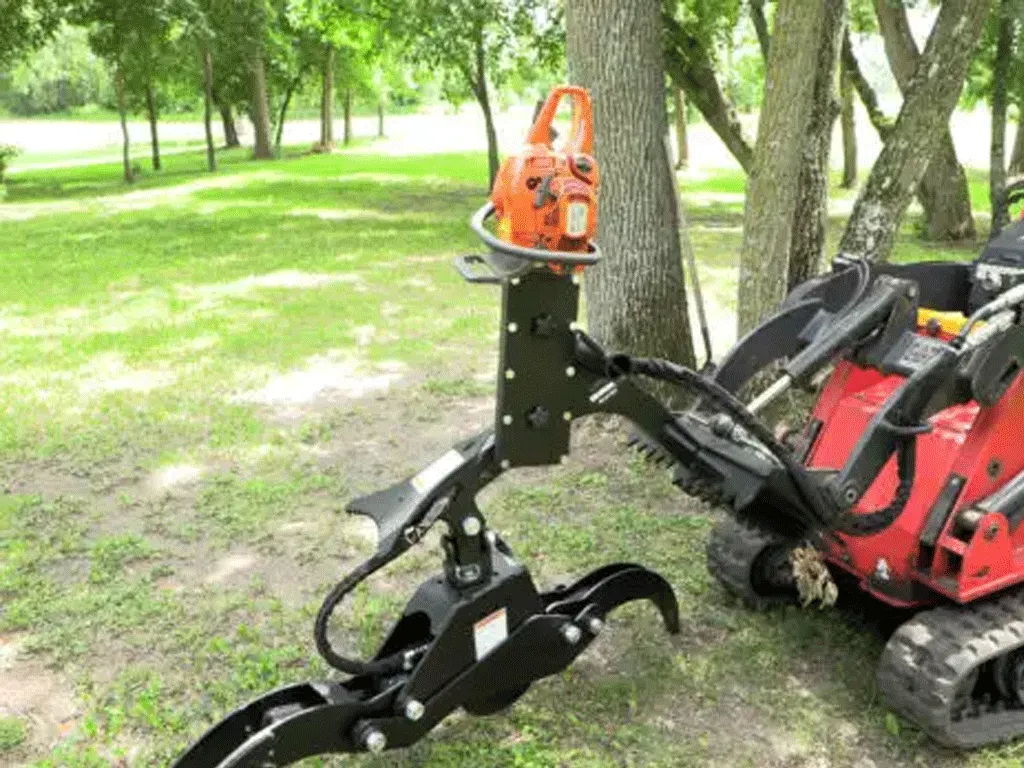

- Built in saw scabbard
- Dual sided rope bollard
- Built in hitch that can be adjusted up or down or stored onboard the unit
SPECS
| Model | Mini Multi-Purpose Grapple | Mini Multi-Purpose Grapple Hydraulic Rotate |
| Part Number | 901922 | 901923 |
| Hydraulic Pump Capactiy Requirements | 5 - 15 GPM | 5 - 15 GPM |
| System Pressure | 2,000 - 3,000 psi | 2,000 - 3,000 psi |
| Maximum Jaw Opening Width | 67" | 67" |
| Minimum Jaw Closing Diameter | 1" | 1" |
| Rotator Capacity | 2,500 lb. | 2,500 lb. |
| Boom Capacity | 1,500 lb. | 1,500 lb. |
| Grapple Cylinder Bore | 2" | 2" |
| Operating Weight (with Toro mounting plate) | 321 lb. | 321 lb. |
| Mounting Kit Configurations | Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi | Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi |
| Options | ||
| Toggle Control Harness* | ||
| Loader Specific Wire Harness* | ||
| Factory Installed Couplers | ||
| * Applies to Hydraulic Model only |
